SHMSEMI Products

SMA/DO-214AC

SMAJ

SMA/DO-214AC

Features:

1. Fast response time ( typically less than 1.0ps from 0V to VBR min)

2. Complies with IEC61000-4-5 standard surge test

3. Complies with IPC/JEDEC J-STD-033C MSD Level 3

4. Uni/Bi polar two functional option

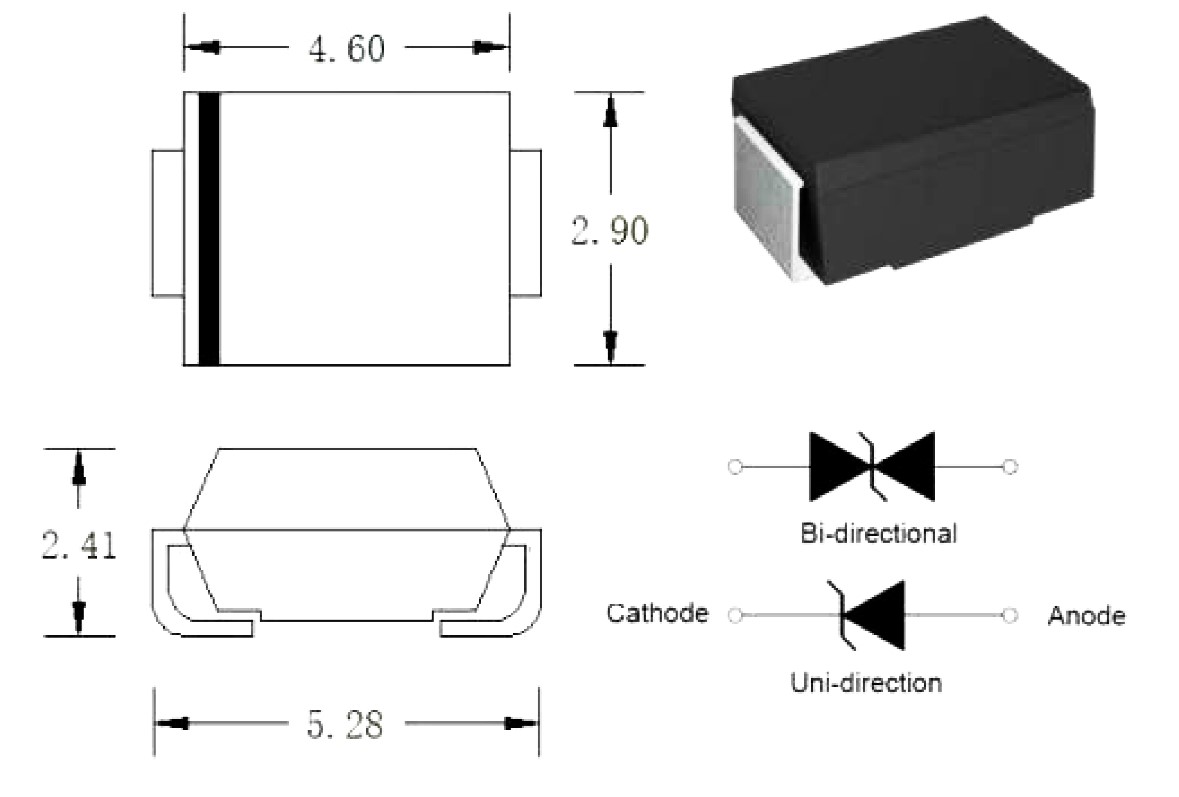

5. Common size of 5.28x2.90x2.64mm DO-214AC package

6. 400W Peak Pulse power capability at10×1000μs waveform

Application:

Electronic products, Automotive industries, Munitions, Telecommunications, Aerospace industries, and Intelligent control systems, testing equipments of I/O Interface, AC/DC Power supply and Low frequency signal transmission line (RS232, RS485, etc.)
